Culture-Insert
- 可輕鬆製造出大小一致的細胞間隙 (500 ± 100 µm)，應用於傷口癒合實驗 (wound healing assay)、細胞遷移實驗 (cell migration assay)、二維細胞侵襲實驗 (2D invasion assay)、細胞共同培養 (cell co-cultivation) …等。
- 可節省細胞 (2.1–4.9 x 10⁴ cells/well) 與培養基 (70–110 µl/well) 用量。
- 細胞間隔框架以矽膠組成，並採無膠接合設計，無需擔心物質殘留造成細胞毒害。
- 框架可自行貼附在任何表面光滑的器皿中，使用彈性便利。
- 相較 Scratch assay，不會有刮傷細胞或 coating 表面的疑慮，且實驗結果再現性更佳。
- 操作簡單，可精確量化實驗結果，有效提高實驗再現性。
歡迎與我們聯繫索取更多 Culture-Insert 產品資訊與文獻。
產品特點
操作簡單便利，可輕鬆製造出大小一致的細胞間隙 (範例：Culture-Insert 2 Well)
細胞間隙特寫
比 Scratch assay 再現性更佳
The ibidi Culture-Inserts provide improved reproducibility when compared with a scratch assay. Time-dependent changes of the open area due to cell migration. A comparison between gap creation by using the ibidi Culture-Insert 2 Well (left) and by scratching with a pipet tip. Data provided by M. Börries, University Freiburg, Germany.

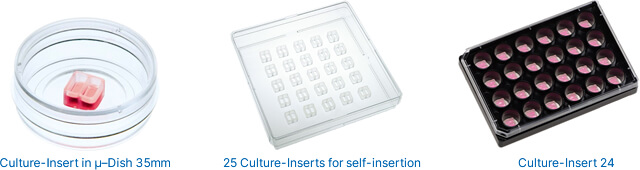

3 種產品包裝型式
三種產品包裝型式，一是「Culture-Insert in μ–Dish 35mm」，為 35 mm µ-Dish 內含單顆 Culture-Insert 的便利組合，可隨取隨用；二是「25 Culture-Inserts for self-insertion」，為 25 顆 Culture-Insert 包裝於一運送用 (非培養用途) 的塑膠盤中，可供自行搭配 6-, 12-well plate 或 35 mm dish 使用；三是「Culture-Insert 24」，為 24-well plate 型式，每個 well 皆含有一顆 Culture-Insert 2 Well，可供測試實驗條件使用。
產品規格
| Culture-Insert 2 Well |
Culture-Insert 3 Well |
Culture-Insert 4 Well |
|
|---|---|---|---|
| Number of wells | 2 | 3 | 4 |
| Outer dimensions | W8.4 x L8.4 x H5 mm | W8.4 x L12.15 x H5 mm | Ø 17 mm |
| Volume per well | 70 µl | 70 µl | 110 µl |
| Growth area per well | 0.22 cm² | 0.22 cm² | 0.35 cm² |
| Coating area per well | 0.82 cm² | 0.82 cm² | 1.23 cm² |
| Width of cell free gap | 500 µm +/- 100 µm | 500 µm +/- 100 µm | Two cell fronts: 500 µm +/- 100 µm Four cell fronts (center): 1000 µm +/- 100 µm |
| Material | Biocompatible silicone | Biocompatible silicone | Biocompatible silicone |
| Bottom | No bottom - sticky underside | No bottom - sticky underside | No bottom - sticky underside |
訂購資訊
| Product Type | Product Name | Surface | Pack Size | Cat. No. |
|---|---|---|---|---|
| Culture-Insert 2 Well | Culture-Insert 2 Well in µ-Dish 35 mm, low | ibiTreat: #1.5 polymer coverslip, tissue culture treated, sterilized | 30 | IB-80206 |
| Culture-Insert 2 Well in µ-Dish 35 mm, high | ibiTreat: #1.5 polymer coverslip, tissue culture treated, sterilized | 30 | IB-81176 | |
| 25 Culture-Inserts 2 Well for self-insertion in a 10 cm transport dish sterilized | - | 25 | IB-80209 | |
| 150 | IB- 80209-150 | |||
| Culture-Insert 2 Well 24 | ibiTreat: #1.5 polymer coverslip, tissue culture treated, sterilized | 3 | IB-80242 | |
| Culture-Insert 3 Well | Culture-Insert 3 Well in µ-Dish 35 mm, high | ibiTreat: #1.5 polymer coverslip, tissue culture treated, sterilized | 30 | IB-80366 |
| 25 Culture-Inserts 3 Well for self-insertion in a 10 cm transport dish sterilized | - | 25 | IB-80369 | |
| Culture-Insert 4 Well | Culture-Insert 4 Well in µ-Dish 35 mm, high | ibiTreat: #1.5 polymer coverslip, tissue culture treated, sterilized | 30 | IB-80466 |
| 25 Culture-Inserts 4 Well for self-insertion in a 10 cm transport dish sterilized | - | 25 | IB-80469 |
